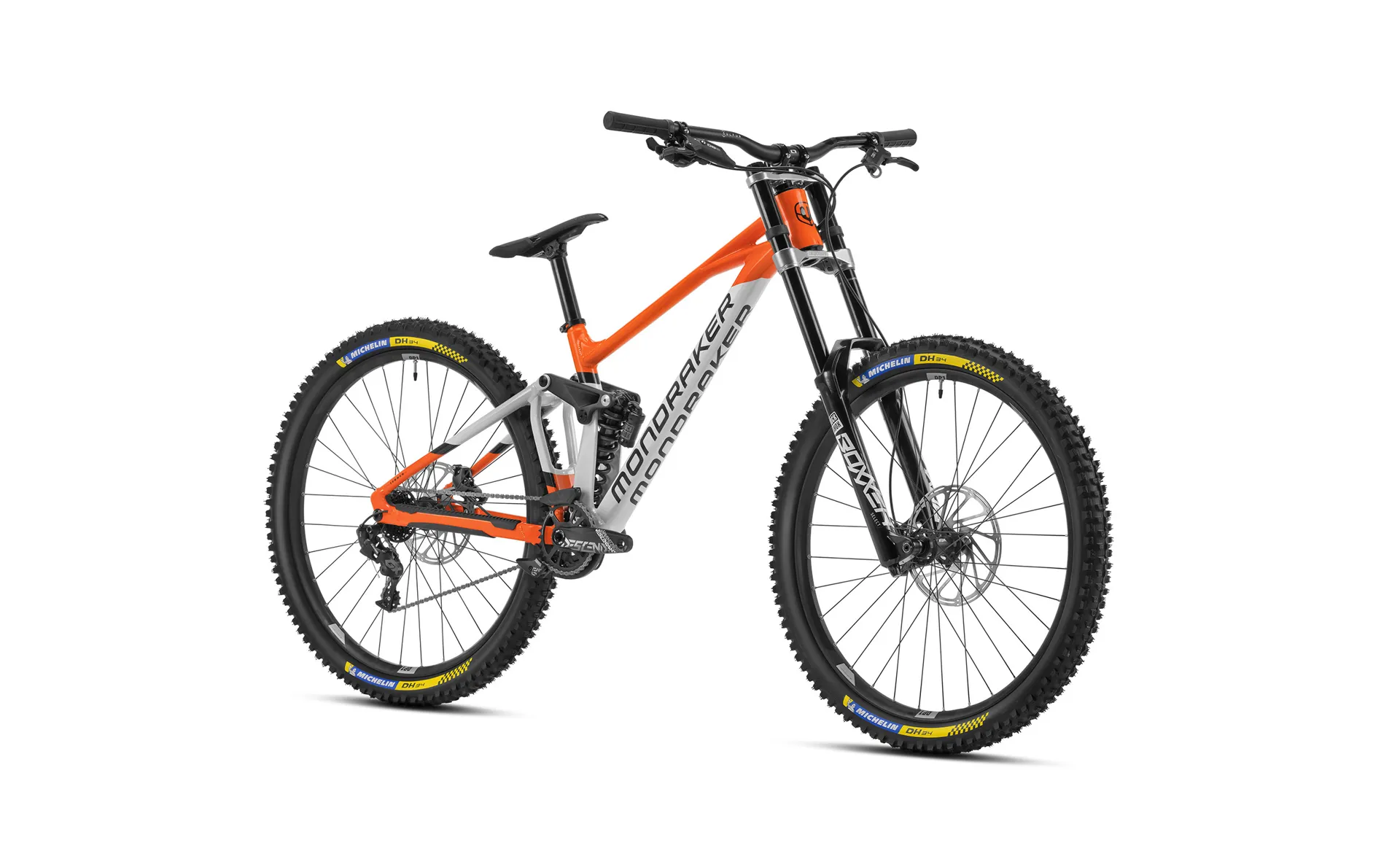

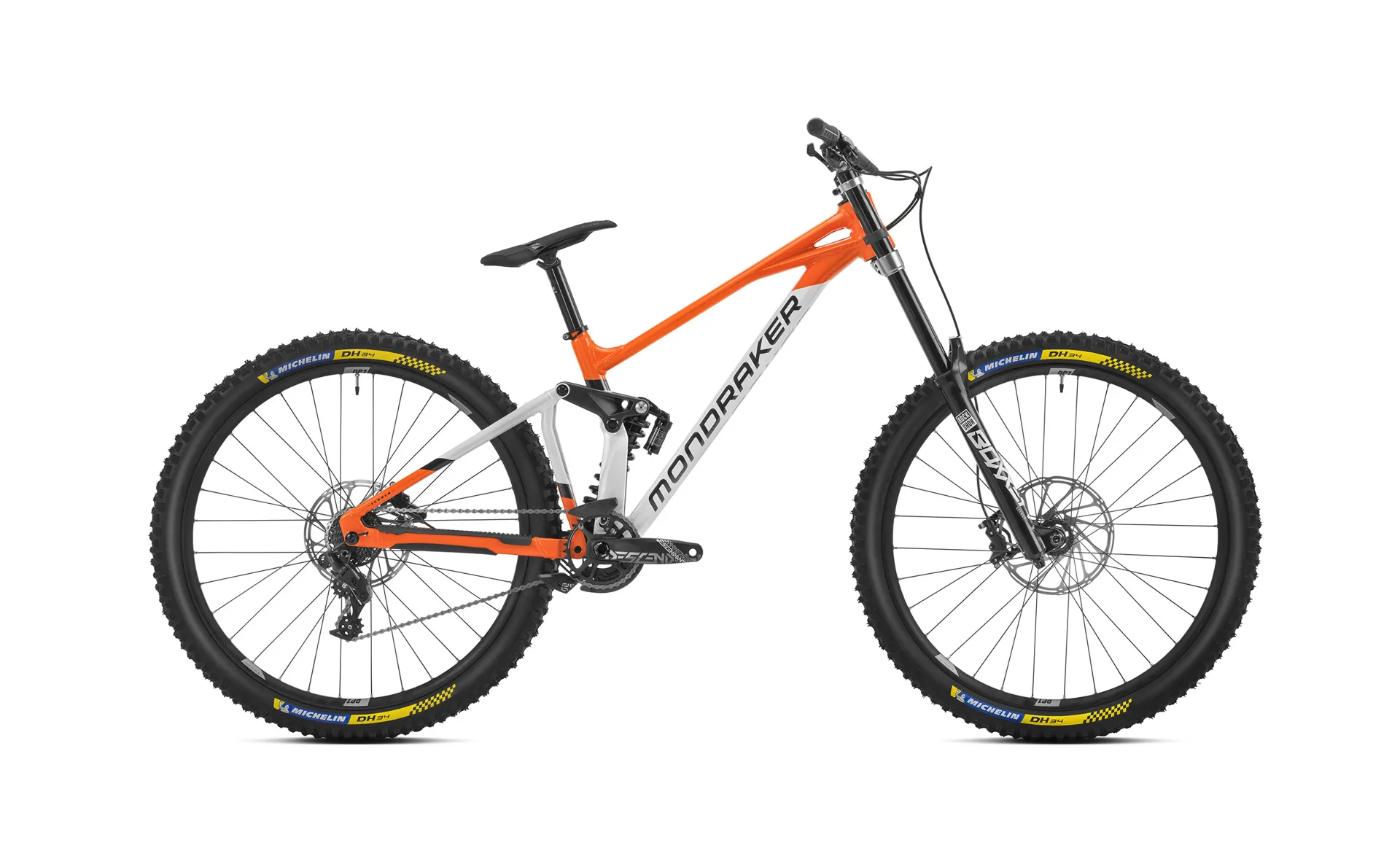

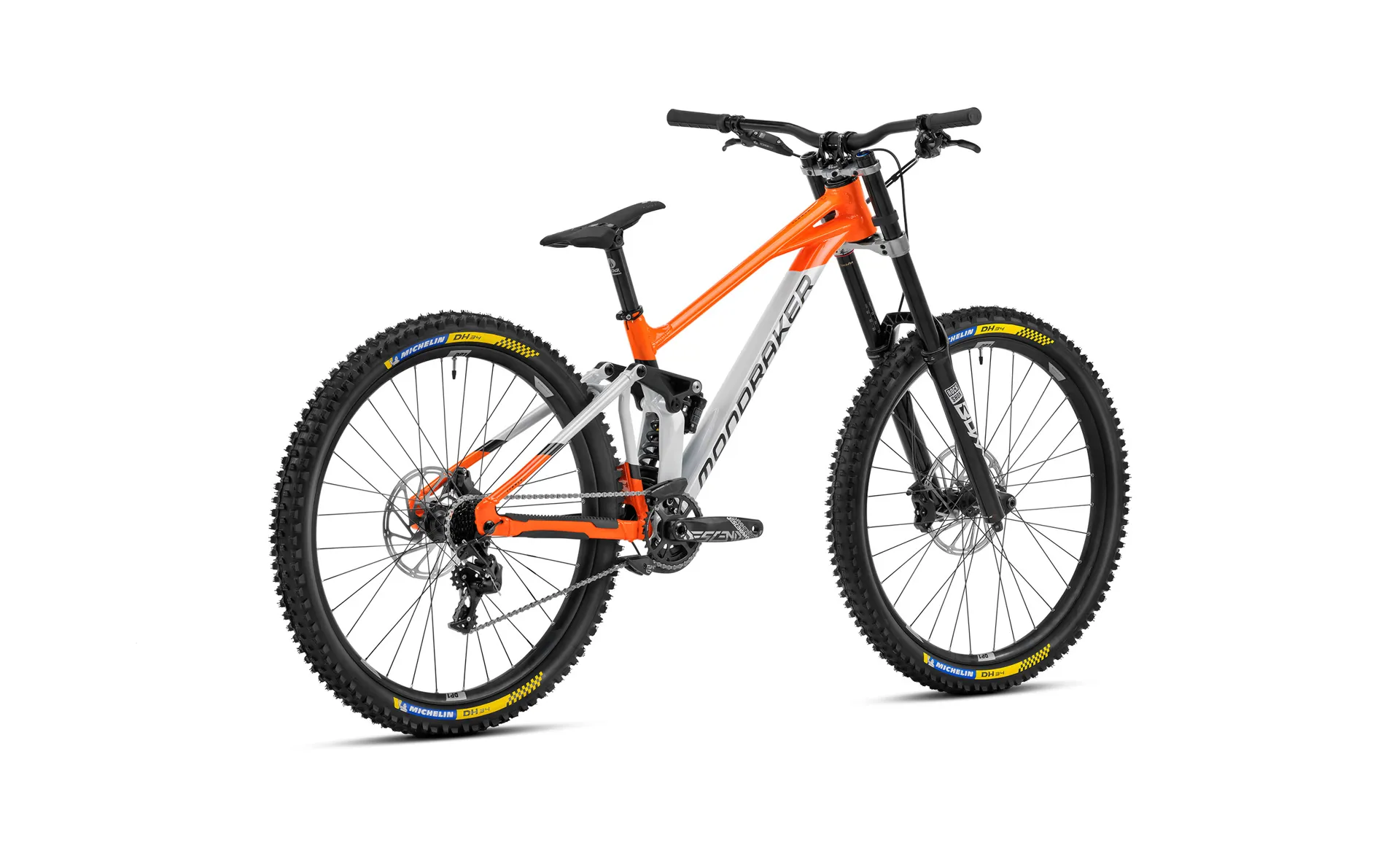

Mondraker Summum 29 2023

Season:2023

Brand:Mondraker

Code:Summum 29

THE FIRST SUMMUM OF THE ENTIRE RANGE

Being the first SUMMUM of the entire range, this is the bike which embodies Mondraker’s more than 20 years of experience manufacturing high-performance DH bikes. Considering all of the World Cup podiums it’s taken, and the 2016 World Championship in Val di Sole where it took the 1st, 2nd and 3rd steps on the podium, it goes to show that our bikes are among the best in the world. That 2016 podium coup was a historic milestone that shows that even the simplest bike in the range can reach the top. Not surprisingly, the suspension system and main features are identical to the SUMMUM CARBON RR which our MS Mondraker Team riders compete on. The geometry change kit is optional on this model.

Technical Information

Frame
Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit
Sizes
S / M / L / XL 29" and MX
Rear shock
Rock Shox Super Deluxe Coil Select R, 225x70mm. LNM ST B1, Linear rebound, Medium compression, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
Medium compression, linear rebound. Spring rate: S size 400 lbs, M size 400 lbs, L size 450 lbs, XL size 500 lbs
Fork
Rockshox Boxxer Select RC 29, 200mm, DebonAir, 1-1/8” steerer tube, Boost 20x110mm axle, offset 56mm. Settings: low-speed compression, rebound, air preload
Headset
ONOFF Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Stem
ONOFF Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Twin, 1lock-on, 135mm
Seatpost
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Saddle
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Front brake
Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram DB8, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram DB8, tool reach adjust
Rims
MDK-DP1 29, 27mm internal width, 32 holes
Spokes
CN stainless steel
Front hub
MDK DA4371B-M20, Boost 20x110mm, IS 6 bolts
Rear hub
MDK DA4352B, 12x157mm, sealed bearings, IS 6 bolts
Front tire
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Rear tire
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Crankset
Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm
Rings
34T, steel, X-SYNC
Bottom bracket
Sram DUB BSA, sealed bearings, 83mm
Chain
Sram PC1110 11s, Powerlock
Front derrailleur
E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Rear derrailleur
Sram GX DH, 7s, medium cage, X-actuation 1:1
Shift levers
Sram trigger GX DH 7s, X-actuation 1:1
Casette
Sram PG 720 11-25T, 7s
Derailleur hanger
Mondraker M068
Others
*Optional geometry kit: +-1º / +-2º headset cups
Weight
18,0 kg

Sizing Information


	FRAME SIZE	S	M	L	XL
A	Seattube length	400 mm	400 mm	400 mm	400 mm
B	Toptube length	573 mm	593 mm	618 mm	643 mm
C	Bottom bracket drop	-20 mm	-20 mm	-20 mm	-20 mm
D	Bottom bracket height	350 mm	350 mm	350 mm	350 mm
E	Chainstay length	450 mm	450 mm	450 mm	450 mm
F	Seat tube angle	69°	69°	69°	69°
G	Effective seattube angle	77°	77°	77°	77°
H	Headtube angle	63°	63,5°	63,5º	63,5
I	Fork Offset	58 mm	58 mm	58 mm	58 mm
J	Wheelbase	1260 mm	1270 mm	1295 mm	1320 mm
K	Headtube length	112 mm	112 mm	112 mm	112 mm
L	Reach	430 mm	450 mm	475 mm	500 mm
M	Stack	632 mm	632 mm	632 mm	632 mm
