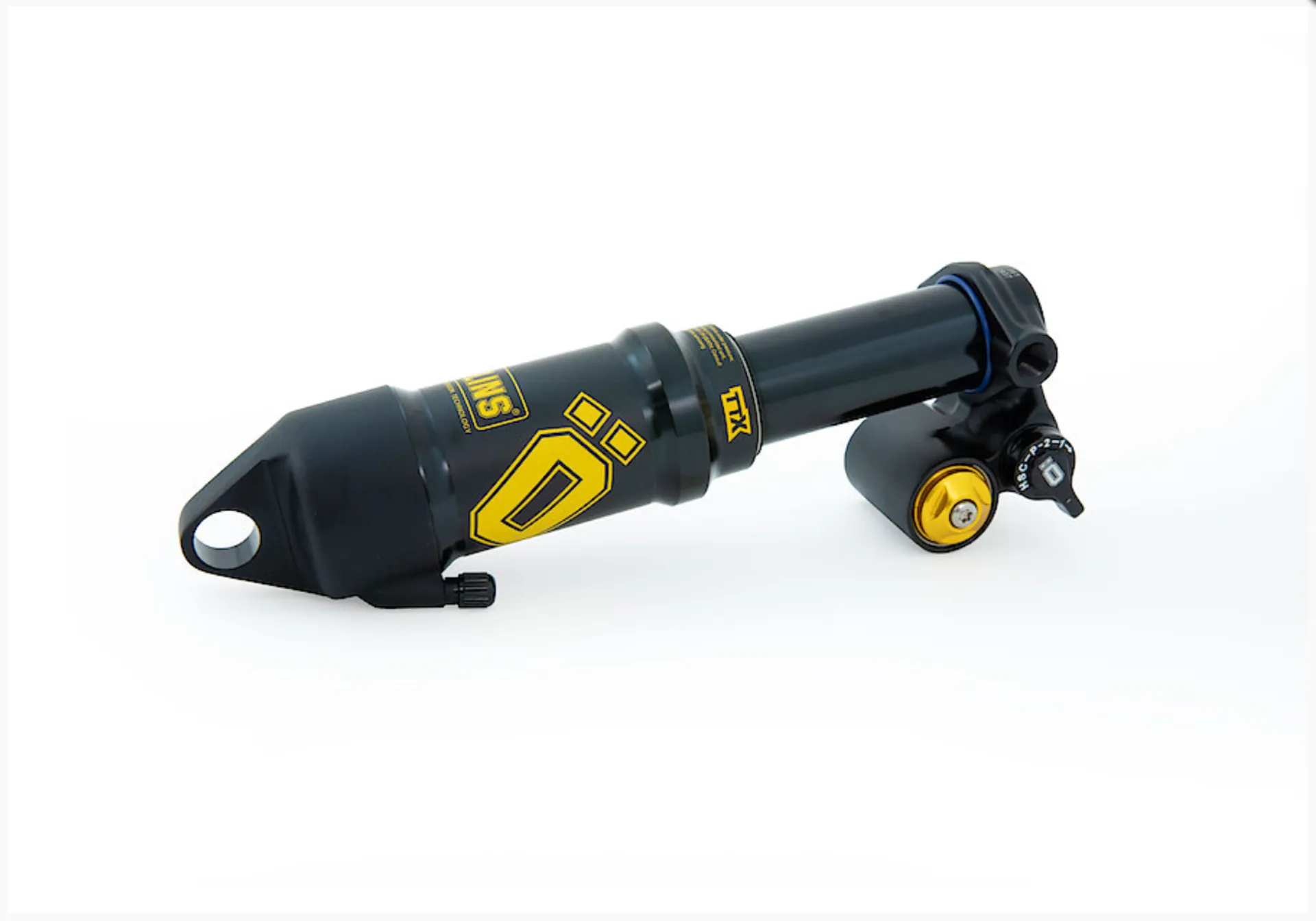

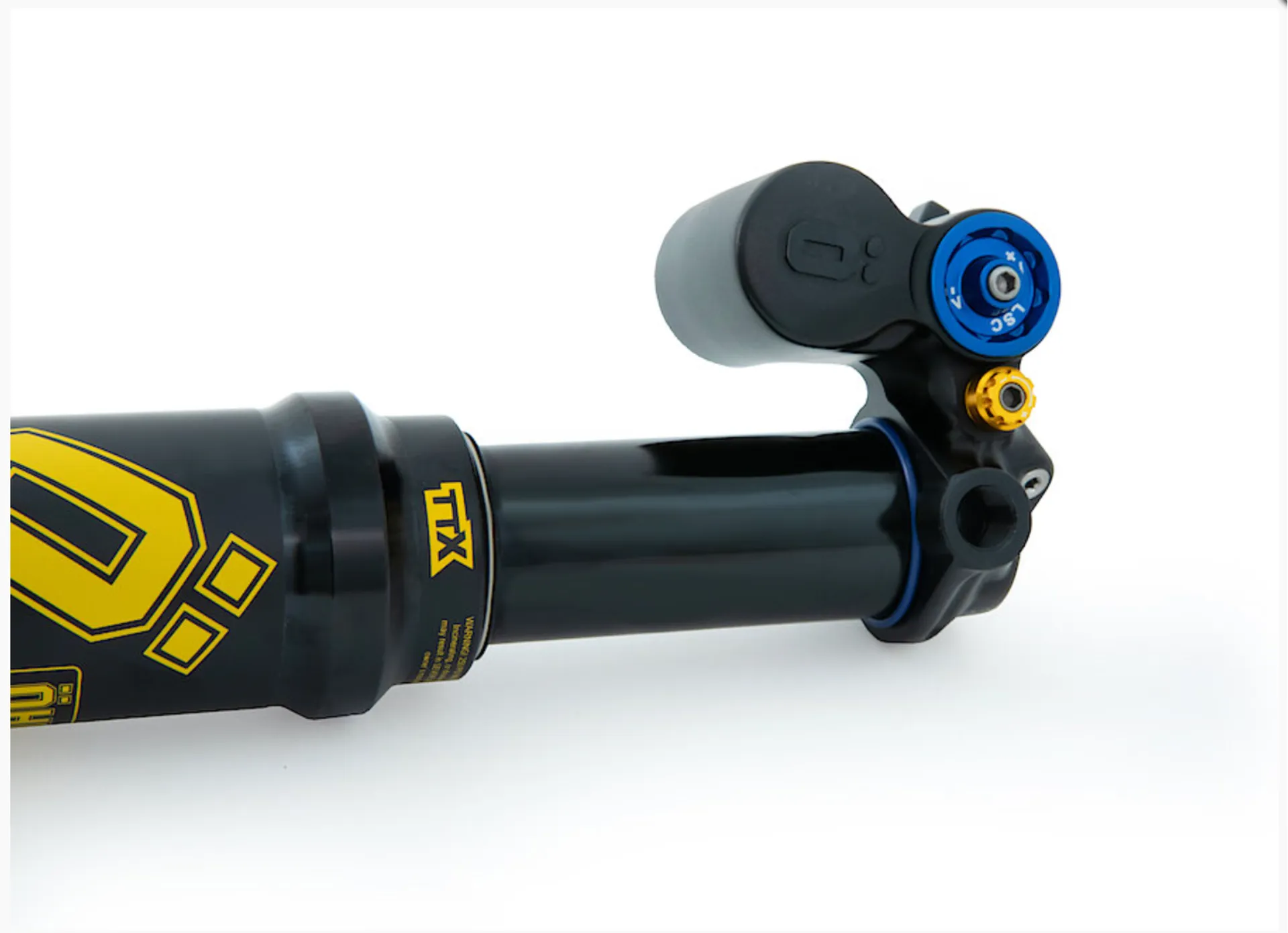

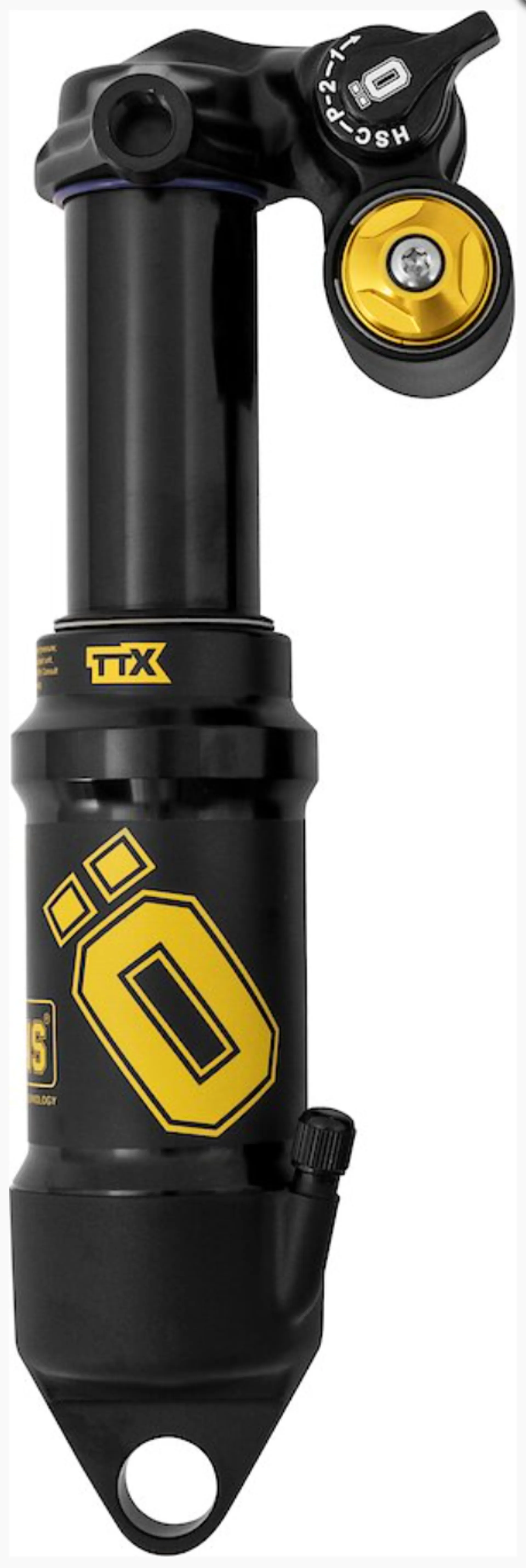

TTX1Air Universal Trunnion 165x40/42.5/45mm

Season:2023

Brand:Ohlins

Code:MTBM 1951

Born out of the highly successful and well proven TTX22M coil shock comes the TTX1Air shock absorber. The TTX1Air combines the best of both worlds - the TTX22M's damping performance and robustness with the light weight and the simple tuning of an air shock.

To keep a high level of suspension performance it is important to follow the service intervals. The 100-hour air spring service can be performed by the rider or by using an Öhlins authorized service center.


Features:

  • Twin-tube technology (TTX)
  • Pressurized system with gas reservoir
  • Aluminum, hard anodized
  • Serviceable, rebuildable
  • 2 years warranty

Technical Specifications:

  • Weight ca. 410 g
  • Length 165 mm
  • Stroke 40 mm, 42,5 mm or 45 mm
  • End-eye diameter 15 x 12,7 mm

Adjustment:

  • 3 click high speed compression damping incl. pedal mode
  • 10 click low speed compression damping
  • 12 click low speed rebound damping
  • Spring rate (via air pressure)
  • Spring progression

Purchased Parts Package:

  • 1 shock absorber TTX1Air Universal Trunnion
  • Owners manual
  • Mounting instruction

Mounting Kits:

For the installation of universal shock absorbers to specific bicycle models mounting kits are available. They consist of bushings, spacers and x-rings and need to be ordered separately (see product group mounting kits).

Technical Information

Features:

  • Twin-tube technology (TTX)
  • Pressurized system with gas reservoir
  • Aluminum, hard anodized
  • Serviceable, rebuildable
  • 2 years warranty

Technical Specifications:

  • Weight ca. 410 g
  • Length 165 mm
  • Stroke 40 mm, 42,5 mm or 45 mm
  • End-eye diameter 15 x 12,7 mm

Adjustment:

  • 3 click high speed compression damping incl. pedal mode
  • 10 click low speed compression damping
  • 12 click low speed rebound damping
  • Spring rate (via air pressure)
  • Spring progression
