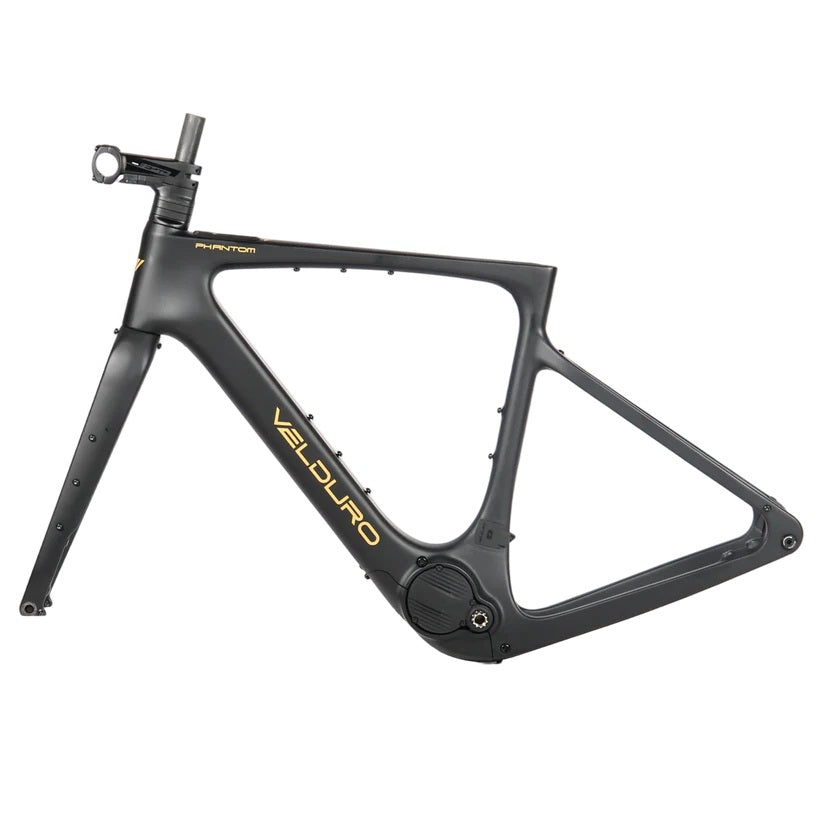

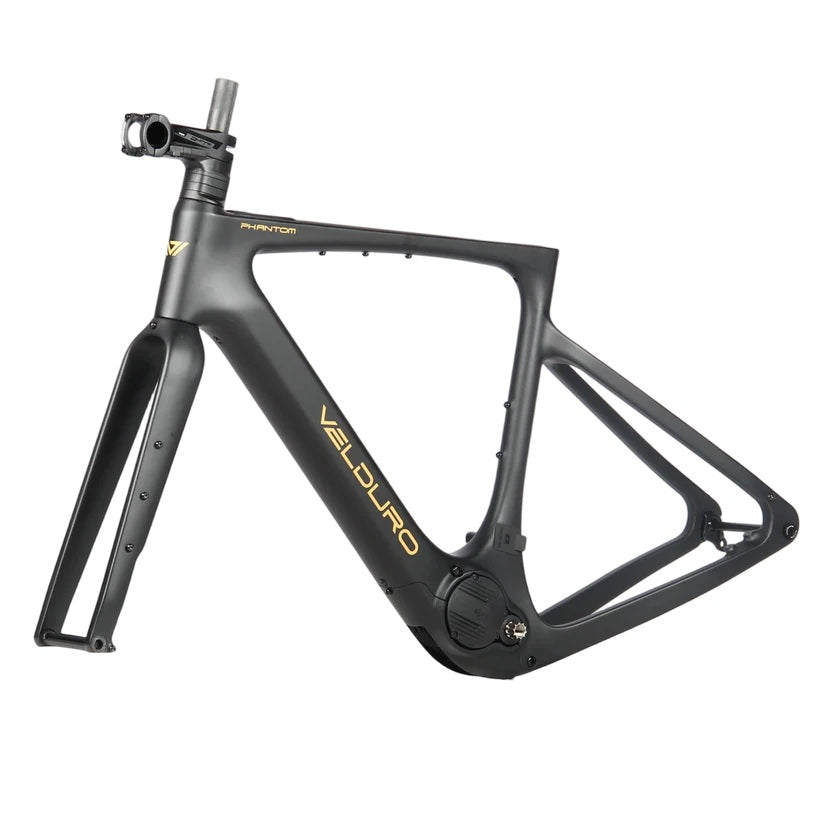

Velduro Phantom Frame

Our Gold Award-winning e-gravel carbon frame is available as a frame-only option. Build your own ultra-lightweight Avinox-powered gravel or flat bar adventure bike.

To secure your Velduro electric bike now, please select your frame choice above and choose whether you wish to place a deposit or make full payment.

Deposit payments: The balance will be required in full 4 weeks prior to delivery. If you have opted to pay a deposit you will receive a message before the balance is required notifying you of the anticipated delivery date of your bike frame.

Secure your Velduro Phantom today: Bikes will be delivered in May 2026 and volumes are limited. Secure your Avinox-powered Velduro Electric Bike today.

What's included with the frame

• Phantom carbon frame
• Phantom carbon fork
• Phantom motor cover
• 12X142 rear thru axle
• UDH Hanger Bottle cage screws
• Seatpost lock-Dji avinox M1 motor 250W 105Nm
• Custom chainwheel and spider
• Dji avinox isis crank 155mm
• Dji avinox battery 36V 600Wh
• Dji DP100 2inch smart screen
• Dji BC100 bluetooth remoter X2
• Dji speed sensor
• Dji 4A 168Wh charger
• Phantom charge port cover

Handlebar, Forks & Saddle

• Internal cable routing headset dia 52mm for both top/bottom
• Drop bar and flat bar both suitable
• Suspension gravel fork suitable, RS-Rudy/ Fox-32TC / SR GVX etc
• Circle seatpost dia 27.2mm, frame insert depth 250mm-dropper and manual
• Dropper suitable, Dia 27.2mn
• Dropper cable length 1100mm

Wheels & Tyres

• Front hub: depends on the fork, normally
  12x100mm
• Rear hub: 12x142mm thru-axle
• Rims: 700 Front tyre: 700x45C as suggest, max to 50C
• Rear tire: 700x45C as suggest, max to 50C

Drive Train

• Chainwheel: 104BCD, up to 44T
• Crank: length up to 165mm, 0 offset suitable
• UDH deralleur suitable,up to 13 speed1x shifting only
• Shimano and SRAM shift both fit
• E-shift and manual shift both fit
• Manual shift cable length 1650mm
