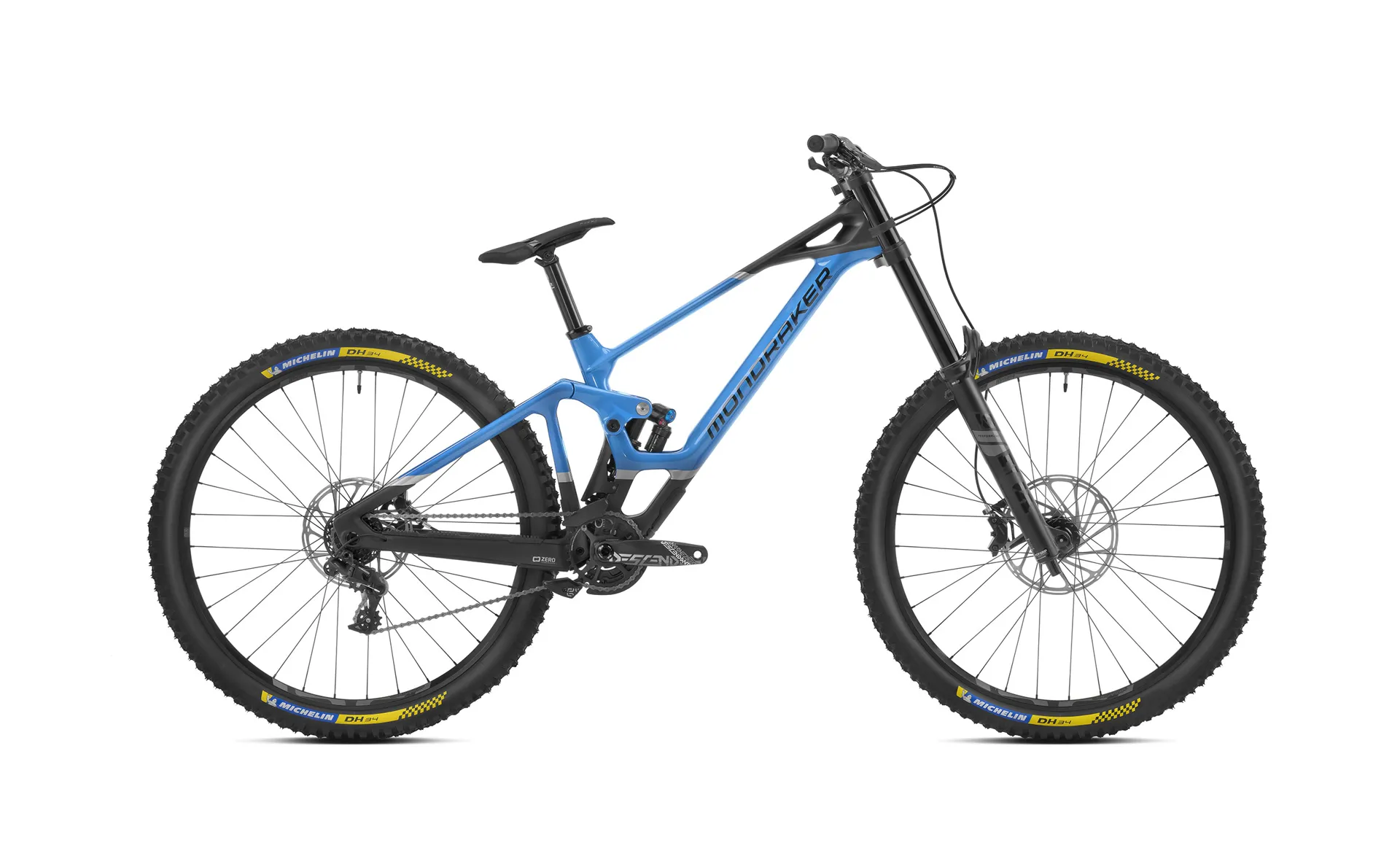

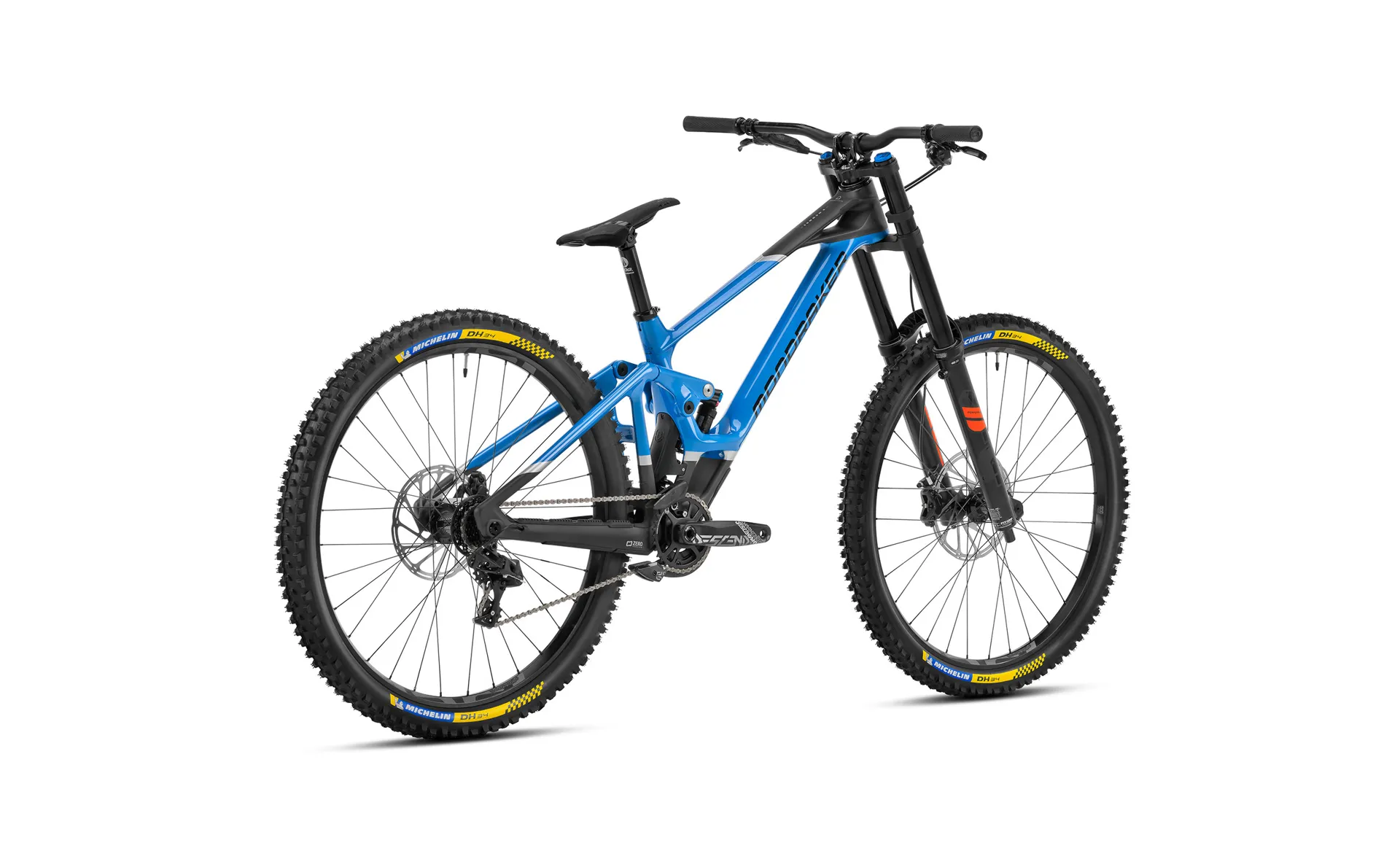

Mondraker Summum Carbon R 29 2023

Frame

Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit.

Sizes

S / M / L / XL 29" and MX

Rear shock

Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs

Fork

Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload

Headset

ONOFF Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm

Stem

ONOFF Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer

Handlebar

ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

ONOFF Desert, 1lock-on, 135mm

Seatpost

SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment

Saddle

SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides

Front brake

Sram Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Code R, tool-free reach adjust

Rims

e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts

Front tire

Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead

Rear tire

Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead

Crankset

Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm

Rings

34T, steel, X-SYNC

Bottom bracket

Sram DUB BSA, sealed bearings, 83mm

Chain

Sram PC1110 11s, Powerlock

Front derrailleur

E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

Rear derrailleur

Sram GX DH, 7s, medium cage, X-actuation 1:1

Shift levers

Sram trigger GX DH 7s, X-actuation 1:1

Casette

Sram PG 720 11-25T, 7s

Others

*Optional geometry kit: +-1º / +-2º headset cups

Weight

16,9 kg
