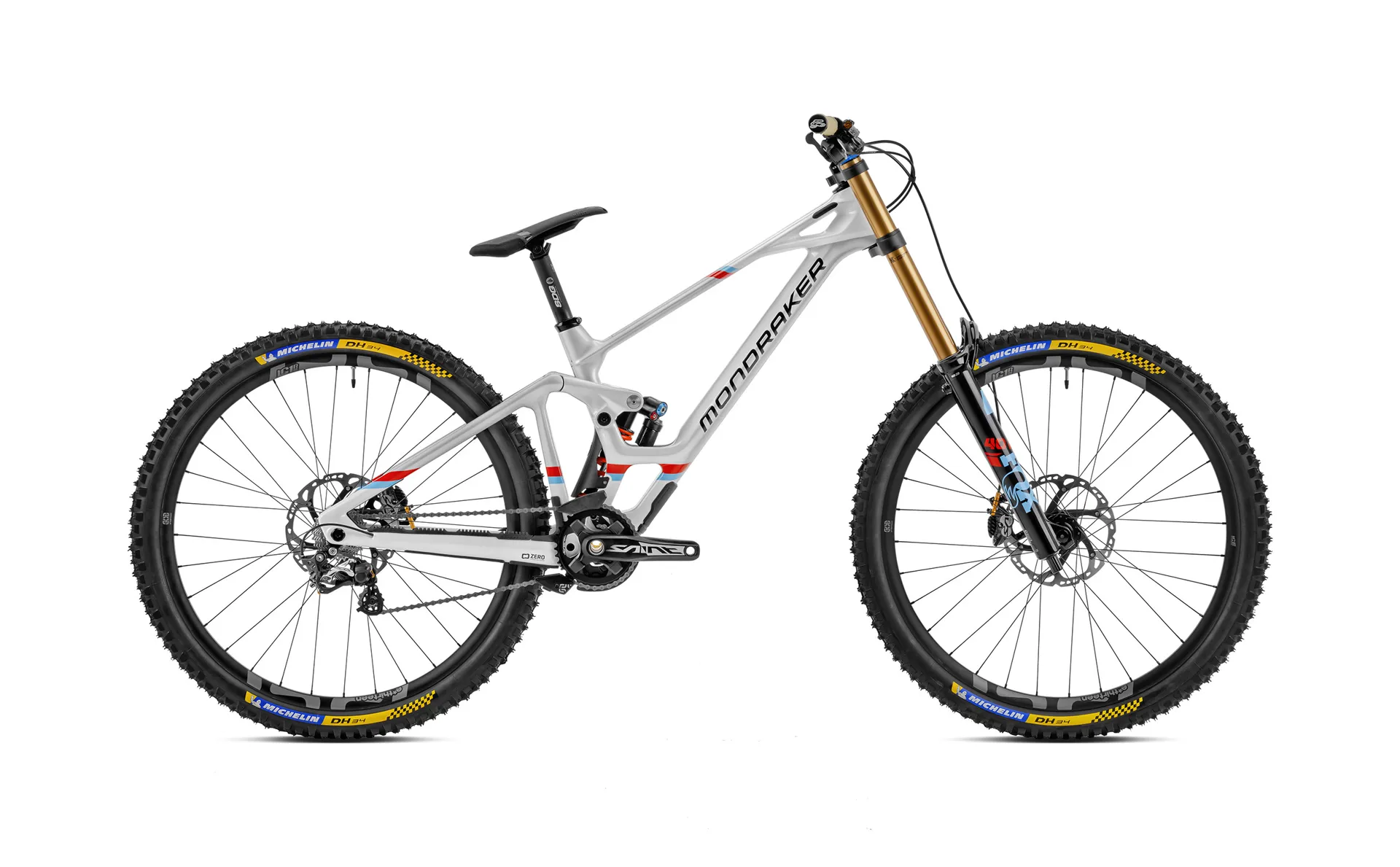

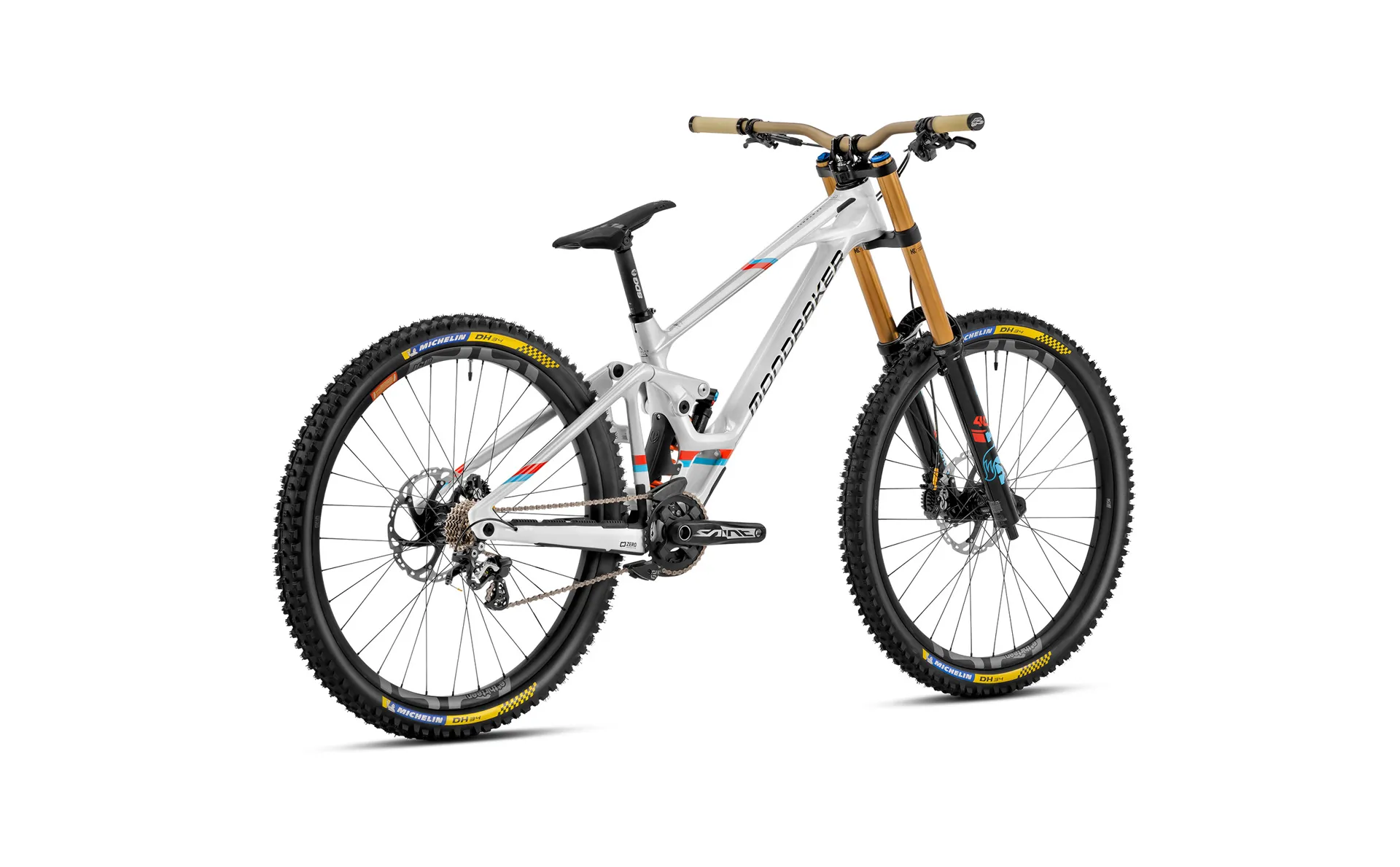

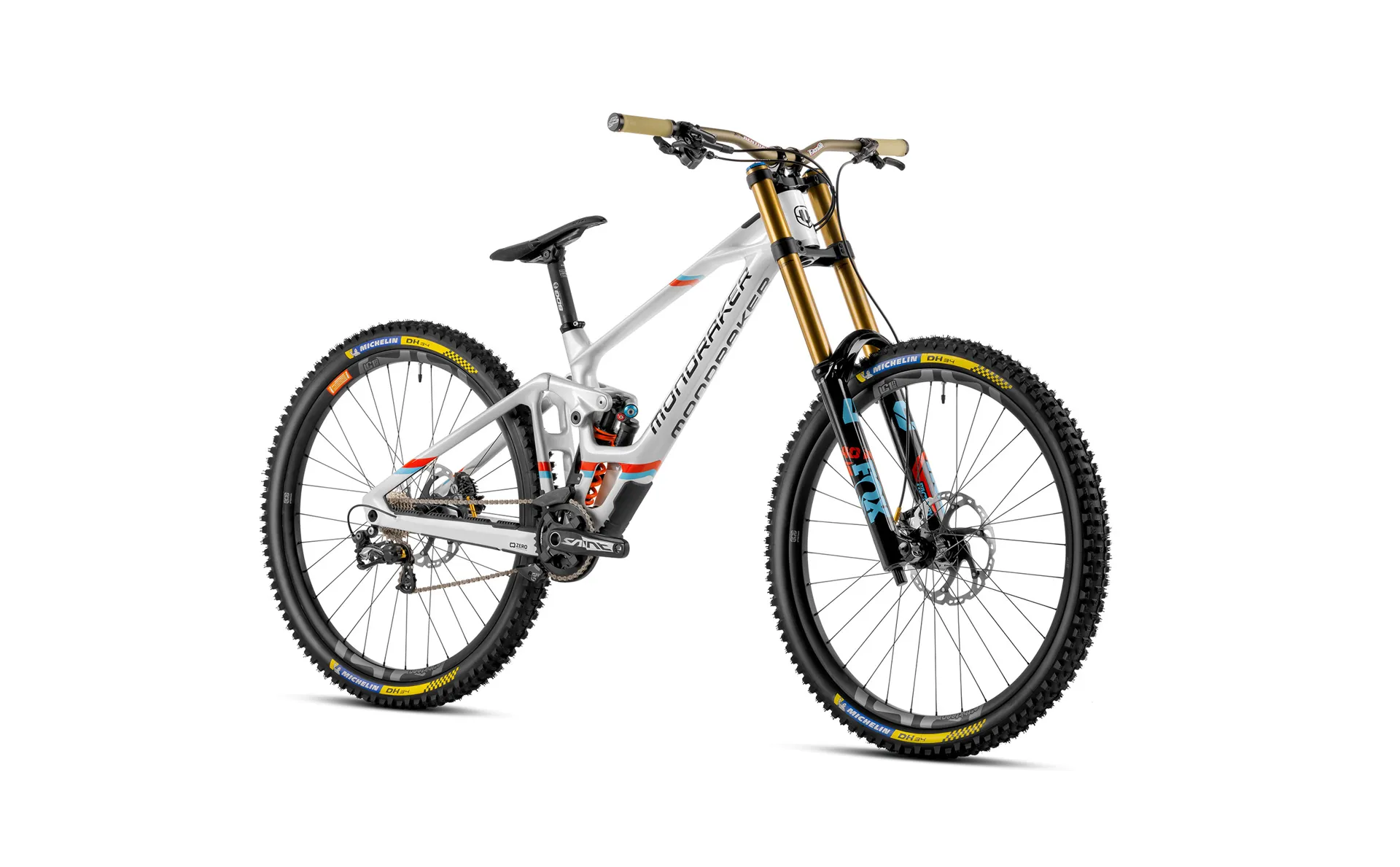

Mondraker Summum Carbon RR 29 2023

€9,999.00

Size Guide

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

RETURNS

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

To complete your return, we require a receipt or proof of purchase.

Mondraker Summum Carbon RR 29 2023

Season:2023

Brand:Mondraker

Code:Summum Carbon RR 29

THE SUMMUM CARBON RR IS THE BIKE OUR MS MONDRAKER TEAM RIDES

The SUMMUM CARBON RR is the bike our MS Mondraker Team rides. It’s the same bike Eleonora Farina rode to several podiums in the World Cup this season. A benchmark on the international circuit for its lightness, shock absorption and rigidity, it’s got all of Mondraker’s cutting edge technologies such as STEALTH AIR FULL CARBON, FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and MIND, the latter which helps you fully optimize both front and rear suspension to truly bring out the best in them. You also have the option of running 29” wheels both front and back or the MX option with a 29" wheel up front and a 27.5" out back. The bike comes complete with a geometry kit to optimize the geometry for the ultimate personal set-up.

Technical Information

Frame
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included.
Sizes
S / M / L / XL 29" and MX
Rear shock
Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Shock settings
ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
Fork
Fox 40 29 Float FIT GRIP2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
ONOFF Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Stem
ONOFF Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Handlebar
Renthal Fatbar series 7 alloy, rise: 30mm, width: 800mm, 7º backsweep, 5º upsweep, 31.8mm barbore
Grips
Renthal, double lock-on, kevlar compound, 130mm
Seatpost
SDG Micro I-Beam SP-951 Carbon, diameter 31.6mm, length 300mm, micro-adjustment
Saddle
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Front brake
Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
Rear brake
Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
Brake lever
Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
Rims
e*thirteen LG1 Race Carbon, IW30 29" Hookless, World Cup carbon fiber, 30mm internal width, tubeless ready, 32 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
Front tire
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Rear tire
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Crankset
Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm
Rings
36T, aluminum, BCD 104
Bottom bracket
Shimano 83mm
Chain
Shimano HG95, 10s
Front derrailleur
E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Rear derrailleur
Shimano Saint RD-M820-SS, 10s, Shadow+, short cage
Shift levers
Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release
Casette
Shimano CS-HG500-10, 11-25T, 10s
Others
*Geometry kit included: +-1º / +-2º headset cups
Weight
16,7 kg

Sizing Information

FRAME SIZE	S	M	L	XL
A	Seattube length	400 mm	400 mm	400 mm	400 mm
B	Toptube length	575 mm	595 mm	620 mm	645 mm
C	Bottom bracket drop	-20 mm	-20 mm	-20 mm	-20 mm
D	Bottom bracket height	350 mm	350 mm	350 mm	350 mm
E	Chainstay length	450/455/460 mm	450/455/460 mm	450/455/460 mm	450/455/460 mm
F	Seat tube angle	69°	68.5º	69°	69°
G	Effective seattube angle	77°	77°	77°	77°
H	Headtube angle	63º	63,5º	63,5º	63,5º
I	Fork Offset	56 mm	56 mm	56 mm	56 mm
J	Wheelbase	1260 mm	1270 mm	1295 mm	1320 mm
K	Headtube length	110 mm	110 mm	112 mm	112 mm
L	Reach	430 mm	450 mm	475 mm	500 mm
M	Stack	632 mm	633 mm	632 mm	632 mm
