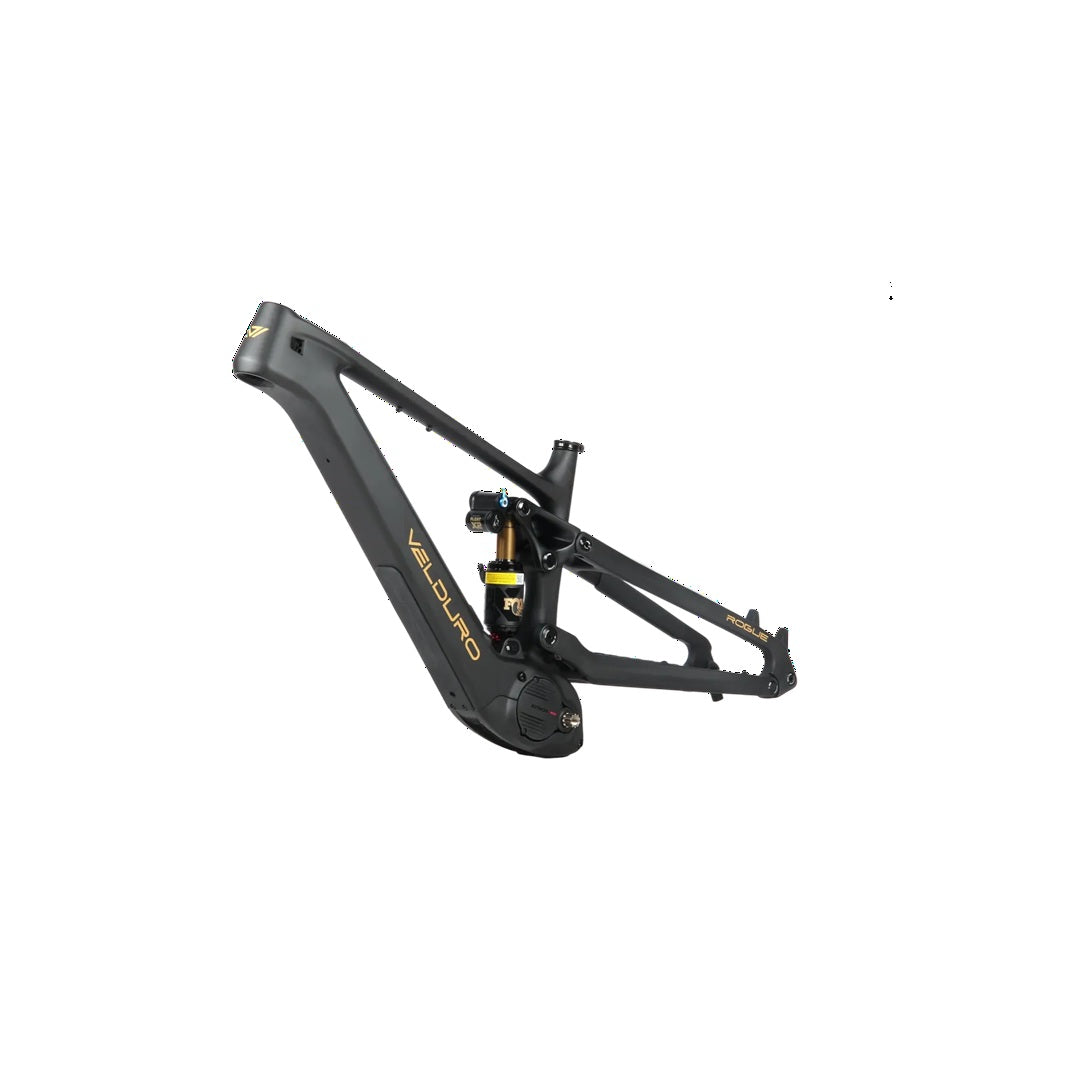

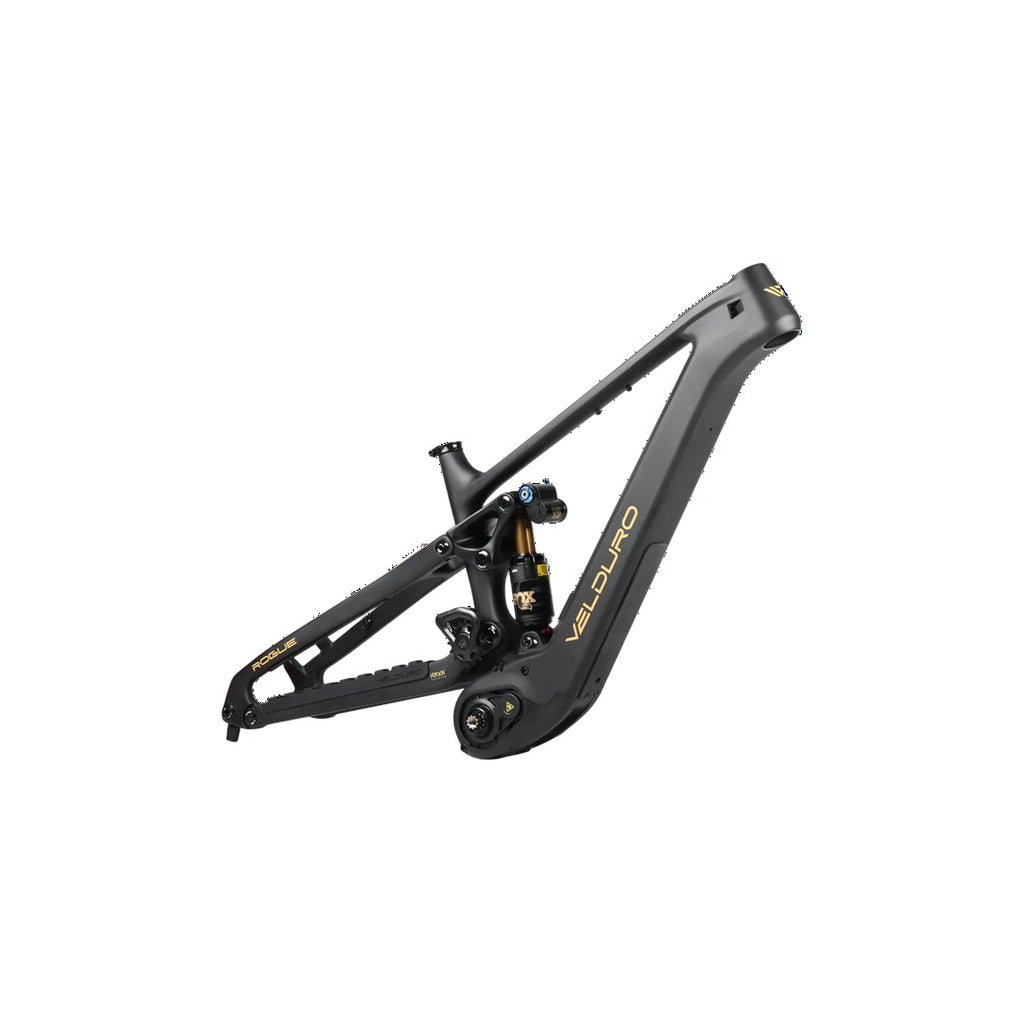

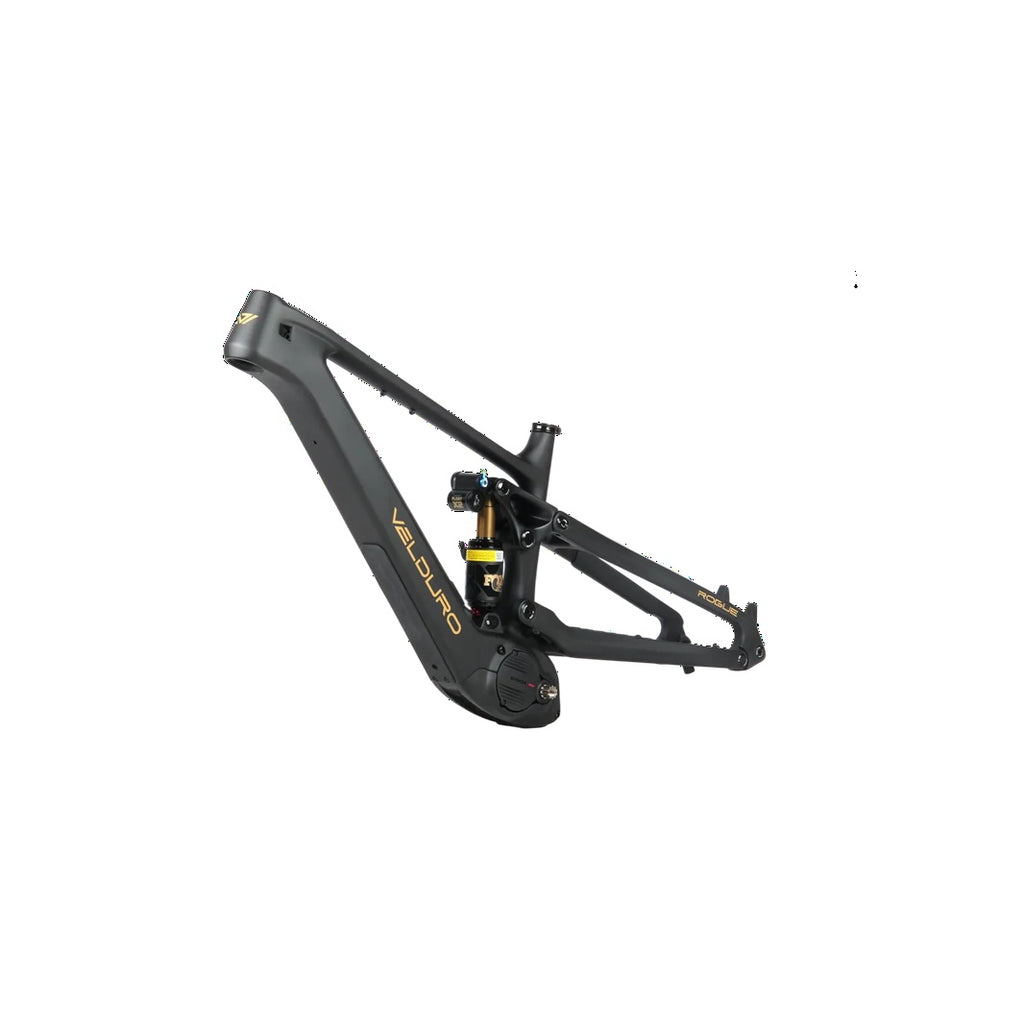

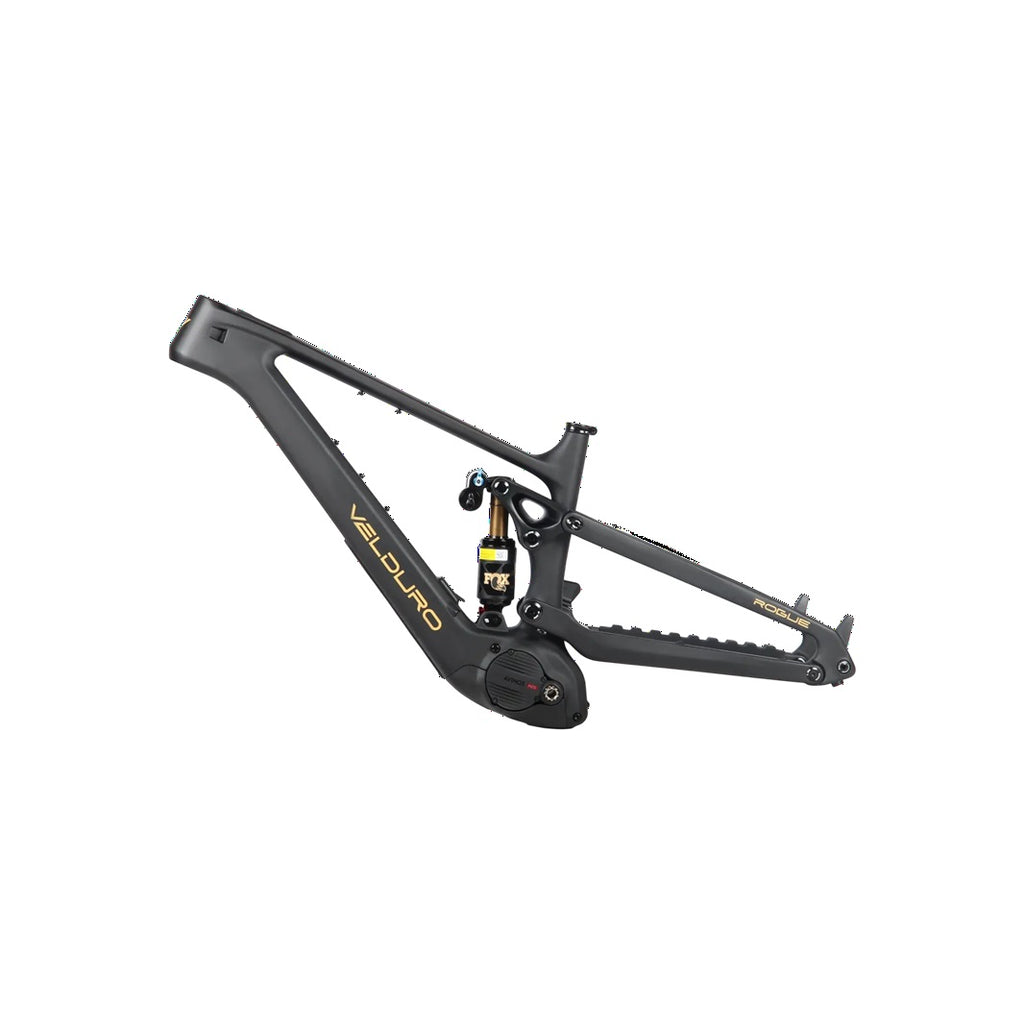

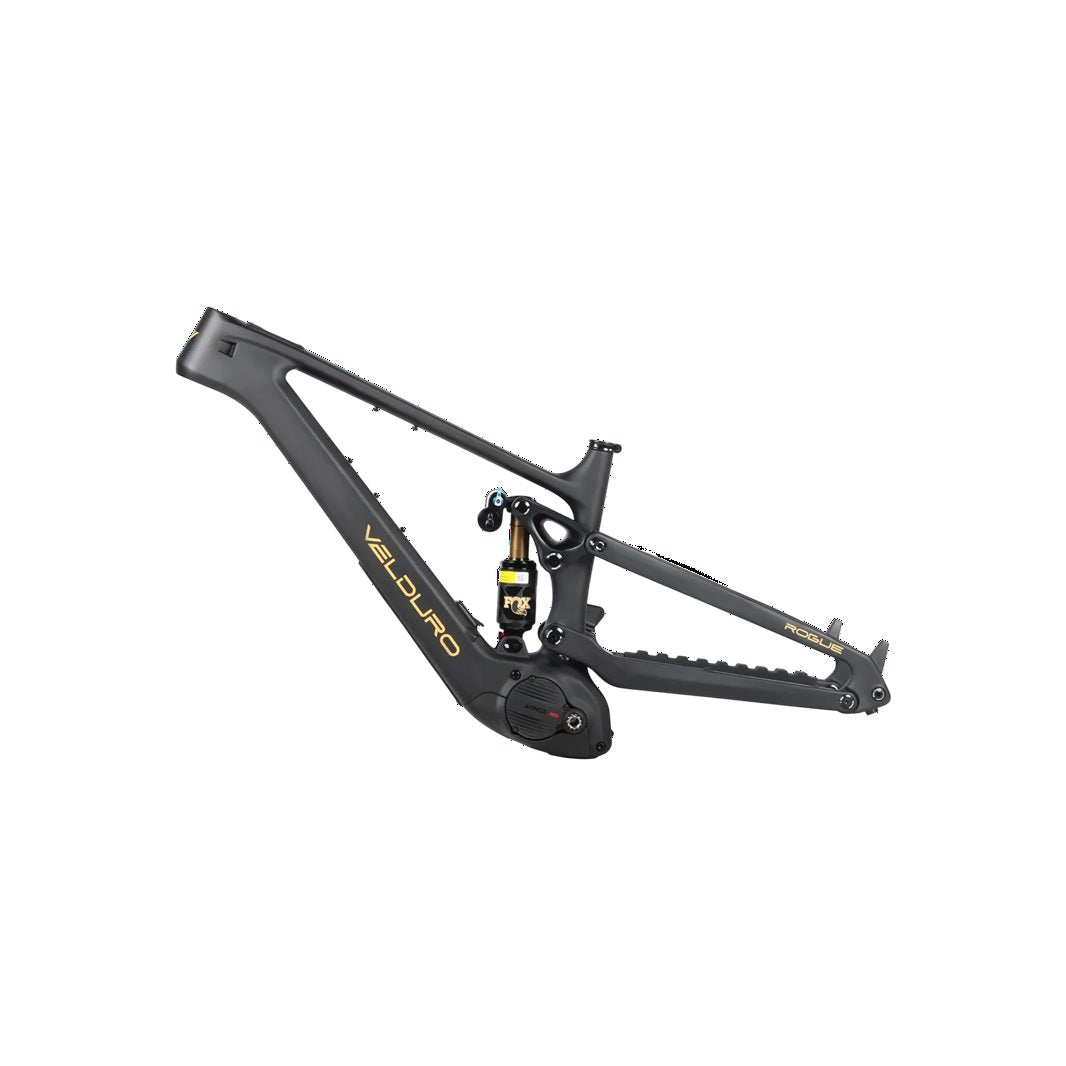

Velduro Rogue Frame With Shock

Build your dream Avinox powered EMTB with Velduro. The Rogue's modular frame has been designed to adapt to your needs and riding style with the easiest of adjustments. Adjust the travel, tweak the geo or switch wheel sizes (29er or mixed) and customise your ride to create your Ultimate Dream Build. In Standard Mode (170mm fork / 165mm rear), it's a trail-taming weapon. Switch to All-Mountain Mode (160mm front/rear) for flowy, high speed precision, or unleash Full Enduro Mode (180mm front / 170mm rear) to conquer anything you can throw at it.

At its core is the customisable DJI Avinox drive system, delivering smooth, intuitive power through an integrated 800Wh battery, giving you the freedom to ride harder and further than ever.

Headset Specs

• External wired headset, dia top 44mm bottom 56mm

Suspension Measurements

• Fork: 1.5T, 160-180mm travel single crown fork suitable, 170mm as suggest, Double crown fork, not suitable
• Shock: Trunnion shock only, eye to eye 205mm, bottom bushing as M8*30mm, 65mm travel as recommended for 165/172mm rear travel, 62.5mm travel for 160/165mm rear travel.

Seatpost Measurements

• Dia 31.6mm, insert depth S: 260mm, M:280mm,L:300mm ,XL: 325mm
• Recommended dropper travel: S:180mm, M&L: 210mm, XL: 240mm
• Dropper cable length: 1200mm

Brake Specifications

• Frame rear brake post mount 203mm
• Front brake mount depends on your fork
• Front brake cable 950mm
• Rear brake cable 1700mm

Drive System Specs

• Chainwheel: 104BCD, Max to 34T
• Crank: Length up to 165mm, min offset:25mm
• UDH derailleur suitable
  1x shifting only
• Shimano and SRAM compatible
• E-shift and manual shift compatible
• Manual shift cable length 2000mm

Wheelset Compatibility

• Front hub: depends on the fork, normally 15x110mm
• Rear hub: 12x148 Boost
• Front rim: 29inch (700C)
• Rear rim:29inch(700C) and 27.5inch(650B) compatible
• Front tire: 29x2.5 recommended, max to 2.6
• Rear tire: 29x2.4/27.5x2.4 recommended, max to 2.6
